Feature:

1. Performance: Receiver receives AlS navigation data from AIS equipped vessels nearby and improves navigation safety.
2. Dual Channel: 2 parallel AIS receivers and GPS receiver in the box monitoring the default marine VHF AIS channels wth optimized sensitivity.
3. Application: Having the receiver on boat, not only can monitor the status of the vessels in the surrounding area, but also can receive the dynamic information.
4. Product Information: Power input is 10‑35V DC, power consumption is 0.95W, electrical interface is RS232 and RS422, baud rate is 38400 bps.
5. Features: Stable signal reception, sensitive and accurate, high working efficiency, and is a must have tool for your navigation.

Specification:

Item Type: AIS Receiver
Material: ABS
Connectors: VHF antenna connector PL259 female
GPS Antenna Connector: TNC female
Power Input; 10-35V DC
Power Consumption: 0.95W
Electrical Interface: RS232 and RS422
Baud Rate: 38400 bps
NMEA Sentence Output:  VDM , VDO , RMC, VTG, GGA, GSA, GSV, GLL
AIS Characteristics
Frequency Rate: 156.025MHZ- 162.25MHZ
AIS Channel 1: CH87B (161.975MHZ)
AIS Channel 2: CH88B (162.025MHZ)
2 LED indicators for receiver channel
Receiver Performance:
1. Receive Sensitivity: -118 dBm Packet Error Rate 2. Intermodulation Suppression 65dB
3. Adjacent Channel Selectivity >70dB
Connection:
PWR+: DC+
PWR-: DC
TXD: RS232 TX
GND: RS232 GND
TX+: RS422 A
TX-: RS422 B

Package List:

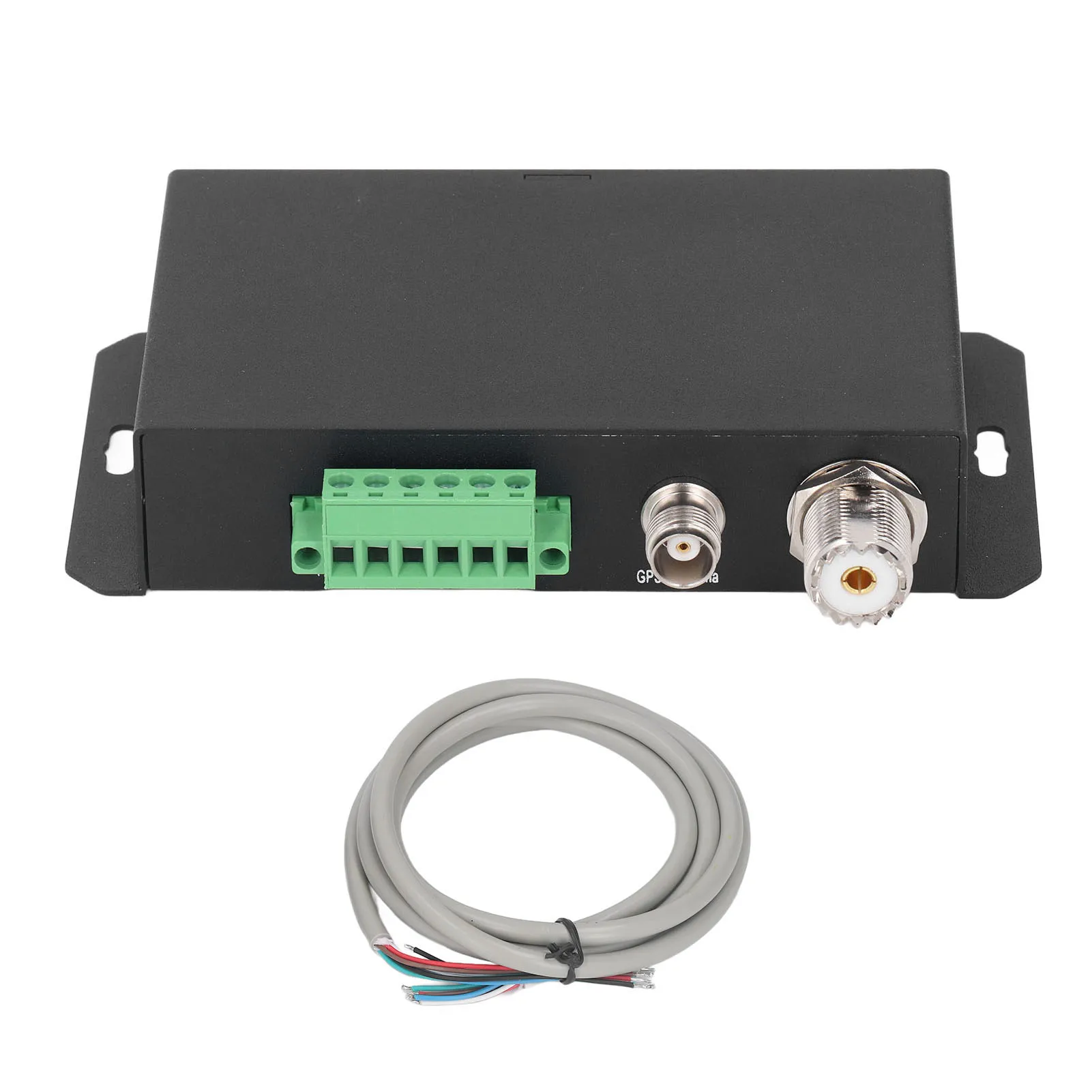

1 x AIS Receiver

1 x Connecting Wire

1 x User Manual
